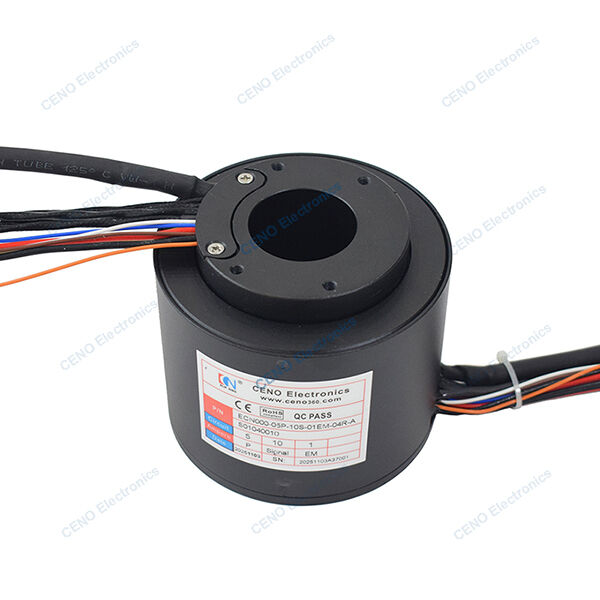

Low Temperature Ethernet Slip Ring with Electric Power for Industry Robot
ECN000-05P-10S-01EM-04R-A is CENO low temperature slip ring combined circuits electric power and Ethernet signal, suit for the equipment working in temperature from -50°C~+70°C. CENO low-temperature slip rings are used in engineering machinery and are specifically designed for harsh operating conditions. They are commonly used in high-altitude airborne equipment, such as aviation instruments, aircraft guidance systems, fuel systems, communication systems, and voice equipment, etc.
Features
- Through hole 3mm-980mm optional
- Capable of operate at an altitude of 1.6*104 m in airborne applications
- Stable transmitting and install easy & Free maintenance
Applications
- high-altitude airborne equip
- Aviation instruments
- Aircraft guidance system
- Fuel system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-05P-10S-01EM-04R-A Specification |
| Current & Circuits |
2 circuits * 5A; 3*10A; 10 * Signal; 1 * Ethernet |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-40°C~+65°C; -50°C~+70°C |
| Working humidity |
95 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~50rpm |
| Outer diameter |
Ø99mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
Outline drawing
|
