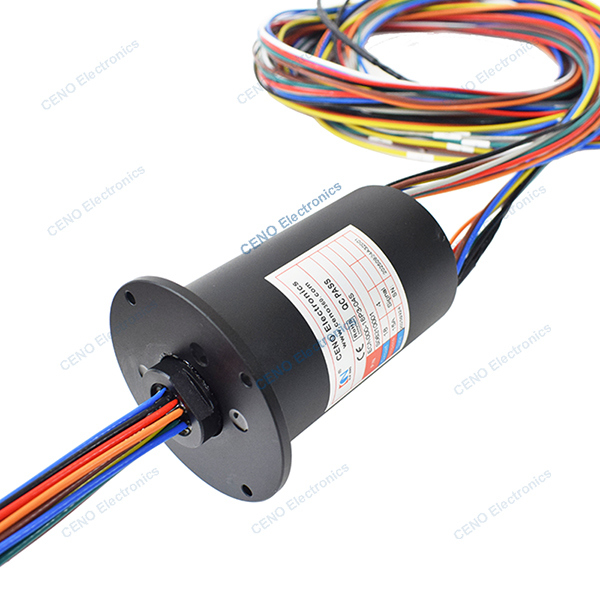

Profinet Signal Slip Ring combine Electric Power Rotary Joint for communication
ECN000-18P3-04S is CENO profinet slip ring which combine circuits electric power with profinet signal, flange design for easier and firmly installation. As the basis of the factory communication digital network, Profinet communication system communicates the connection between on-site control equipment in the production process and between it and high control management levels. CENO has developed a series of signal slip ring for the application needs of fieldbuses, such as CAN, Profibus and field Ethernet etc.
Features
- Combine Power with kinds of RS, NET or BUS signal
- Stable transmitting, no string code, can be integrate various signal /data
- Install easy & Free maintenance
Applications
- Power automation
- Production automation
- Intelligent device
- Communication system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-18P3-04S Specification |
| Current & Circuits | 18 circuits * 15A; 1 group * profinet |
| Rating Voltage | 0 ~ 24 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥300MΩ@500VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP55 |
| Operating speed | 0~5rpm |
| Outer diameter | Ø60mm |
| Contact material | Gold to gold / Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire size & length | As customized |
Outline drawing
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
